Module Design
		Compatible To ISO 6431 Cylinders
			Low Deviation High Precision
				Optional Accessories Available

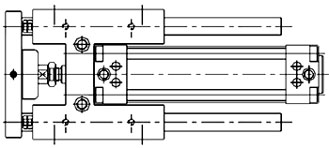

Standard Type - MGC Series

Model	Bore Size mm	Theoretical Thrust kgf	Non- Rotating	Speed Range mm / s	Pressure Range kgf / cm2	Temperature	Standard Stroke mm	Download PDF
MGC 32	32	40.20	L : 0.08O M : 0.05O	100 ~ 500	2.0 ~ 9.0 (Air)	0.OC ~ 60OC	50 ~ 300
MGC 40	40	62.85
MGC 50	50	98.15					50 ~ 500
MGC 63	63	155.35
MGC 80	80	251.35					50 ~ 750
MGC 100	100	392.70

Download Acrobat Reader for open PDF file

Accessory For Guide Cylinders Assembly :

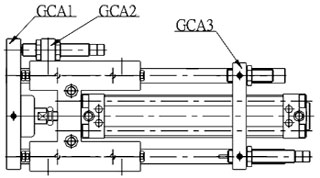

Absorbers Type

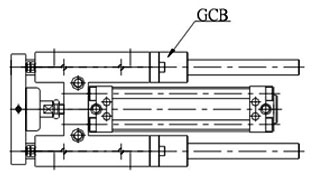

Beamed Type

Bore Size (mm)	Front Plate	Fixing Block	End Plate	Beamed Type
MGC 32,40	32 GCA1	32 GCA2	32 GCA3	32 GCB
MGC 50,63	50 GCA1	50 GCA2	50 GCA3	50 GCB
MGC 80 ,100	80 GCA1	80 GCA2	80 GCA3	80 GCB
